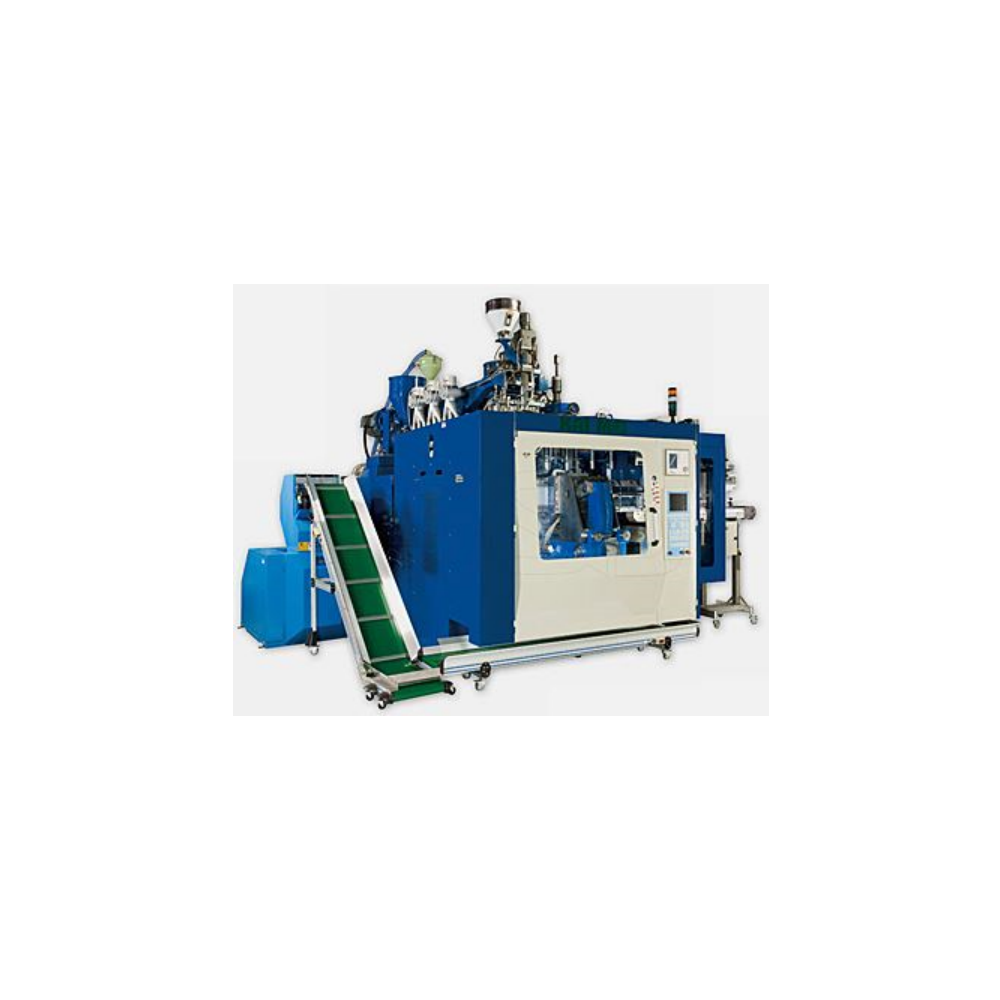

PBS-905D-VS-TRL, QL, FL

PBS-905D-VS-TRL, QL, FL

Video: PBS-905D-VS-TRL     PBS-605S-VS-TL

- Powerful crank-type mold clamping system combined with Germany linear motion guides ways provides maximum stability for clamping motions. Multiple extruding mechanisms enable the machine produce various materials of products such as pesticide bottles, oil tanks, food (milk and mayonnaise) and chemical containers. Upon request, the machine is available to equip with various optional equipment such as see-through window and multiple die heads, etc. Full automatic, high efficiency production can be achieved when auto deflashing device and robot are employed.

PBS-905D-VS-TRL, QL, FL
Download

MODEL NO UNIT PBS-405S-TRL PBS-405D-TRL PBS-405S-QL PBS-405D-QL PBS-405S-FL PBS-405D-FL
Mould center distance mm 　 120 　 120 　 120
Product max. capacity C.C. 80-1000 80-400 80-1000 80-400 80-1,000 80-400
Min./Max. dia. Of product mm 30-100 20-80 30-100 20-80 30-100 20-80
　 　 PE GLUE EVOH PE GLUE EVOH PE PE GLUE EVOH PE PE GLUE EVOH PE GLUE EVOH PE GLUE EVOH
Screw Diameter mm 45 30 30 45 30 30 40 40 30 30 40 40 30 30 45 30 30 45 35 30
Screw L/D Ratio 　 24/1 26/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1
Inverter Motor HP 10 5 5 10 5 5 7.5 7.5 5 5 7.5 7.5 5 5 10 5 5 10 5 5
Capacitor for barrel KW 3.8 1.8 1.65 3.8 1.8 1.65 3 3 1.8 1.65 3 3 1.8 1.65 3 1.8 1.65 3.8 2.5 1.8
Screw Speed r.p.m 20-65 20-65 20-65 20-65 20-65 20-65
Extruding capacity Kg/hr 24 24 24 24 24 24
Capacitor for die head KW 3.5 4.8 3.8 5.2 4 5.7
Clamping Force Ton 4.6 4.6 4.6 4.6 4.6 4.6
Hydraulic Drive Motor HP 5 5 5 5 5 5
Air Pressure Kg/cm² 6-8 6-8 6-8 6-8 6-8 6-8
Air Consumption L/min 500 500 500 500 500 500
Total Electric Power KW 30 31 36 37 29 33
Average Energy Consumption KW 24 25 29 30 24 26
Machine N.W. Kg 2,700 2,700 2,700 2,700 2,700 2,700
Machine G.W. Kg 3,200 3,200 3,200 3,200 3,200 3,200

MODEL NO UNIT PBS-605S-TRL PBS-605D-TRL PBS-605S-QL PBS-605D-QL PBS-605S-FL PBS-605D-FL
Mould center distance mm 　 160 　 160 　 160
Product max. capacity C.C. 1000-5000 450-1800 1000-5000 450-1800 1000-5000 450-1800
Min./Max. dia. Of product mm 75-200 50-110 75-200 50-110 75-200 50-110
　 　 PE GLUE EVOH PE GLUE EVOH PE PE GLUE EVOH PE PE GLUE EVOH PE GLUE EVOH PE GLUE EVOH
Screw Diameter mm 60 35 35 60 35 35 55 45 35 35 55 45 35 35 60 35 35 60 40 35
Screw L/D Ratio 　 24/1 26/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1
Inverter Motor HP 20 5 5 20 5 5 15 10 5 5 15 10 5 5 20 5 5 20 7.5 5
Capacitor for barrel KW 6.3 2.5 2.325 6.3 2.5 2.325 5.8 3.8 2.5 2.325 5.8 3.8 2.5 2.325 6.3 2.5 2.325 6.3 3.25 2.325
Screw Speed r.p.m 20-65 20-65 20-65 20-65 20-65 20-65
Extruding capacity Kg/hr 55 55 55 55 55 55
Capacitor for die head KW 6 10 7 11 8 12
Clamping Force Ton 9 9 9 9 9 9
Hydraulic Drive Motor HP 15 15 15 15 15 15
Air Pressure Kg/cm² 6-8 6-8 6-8 6-8 6-8 6-8
Air Consumption L/min 700 700 700 700 700 700
Total Electric Power KW 51 55 59 63 53 60
Average Energy Consumption KW 40.8 44 47.2 50.4 42.4 48
Machine N.W. Kg 5,100 5,100 5,100 5,100 5,100 5,100
Machine G.W. Kg 5,800 5,800 5,800 5,800 5,800 5,800

MODEL NO UNIT PBS-905S-TRL PBS-905D-TRL PBS-905S-QL PBS-905D-QL PBS-905S-FL PBS-905D-FL
Mould center distance mm 　 250 　 250 　 250
Product max. capacity C.C. 10,000-20,000 1,500-5,000 10,000-20,000 1,500-5,000 10,000-20,000 1,500-5,000
Min./Max. dia. Of product mm 150-300 120-200 150-300 120-200 150-300 120-200
　 　 PE GLUE EVOH PE GLUE EVOH PE PE GLUE EVOH PE PE GLUE EVOH PE GLUE EVOH PE GLUE EVOH
Screw Diameter mm 90 45 45 90 45 45 75 65 45 45 75 65 45 45 90 45 45 90 55 45
Screw L/D Ratio 　 24/1 26/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1 24/1 26/1 24/1
Inverter Motor HP 60 10 10 60 10 10 40 20 10 10 40 20 10 10 60 10 10 60 15 10
Capacitor for barrel KW 14.1 4.1 3.8 14.1 4.1 3.8 10 6.7 4.1 3.8 10 6.7 4.1 3.8 14.1 4.1 3.8 14.1 7.3 3.8
Screw Speed r.p.m 20-65 20-65 20-65 20-65 20-65 20-65
Extruding capacity Kg/hr 130 130 130 130 130 130
Capacitor for die head KW 12 16.2 13 17.5 14.5 19
Clamping Force Ton 21 21 21 21 21 21
Hydraulic Drive Motor HP 30 30 30 30 30 30
Air Pressure Kg/cm² 6-8 6-8 6-8 6-8 6-8 6-8
Air Consumption L/min 1500 1500 1500 1500 1500 1500
Total Electric Power KW 117 121 120 125 119 131
Average Energy Consumption KW 93 97 96 100 95 104
Machine N.W. Kg 10,600 10,600 10,600 10,600 10,600 10,600
Machine G.W. Kg 12,100 12,100 12,100 12,100 12,100 12,100
*All specifications and designs are subject to change without notice
