PBI-805X/905X/1005X/1105X/1205X/1305X

PBI-805X/905X/1005X/1105X/1205X/1305X

Video: PBI-1105     PBI-1205X     PBI-1305X

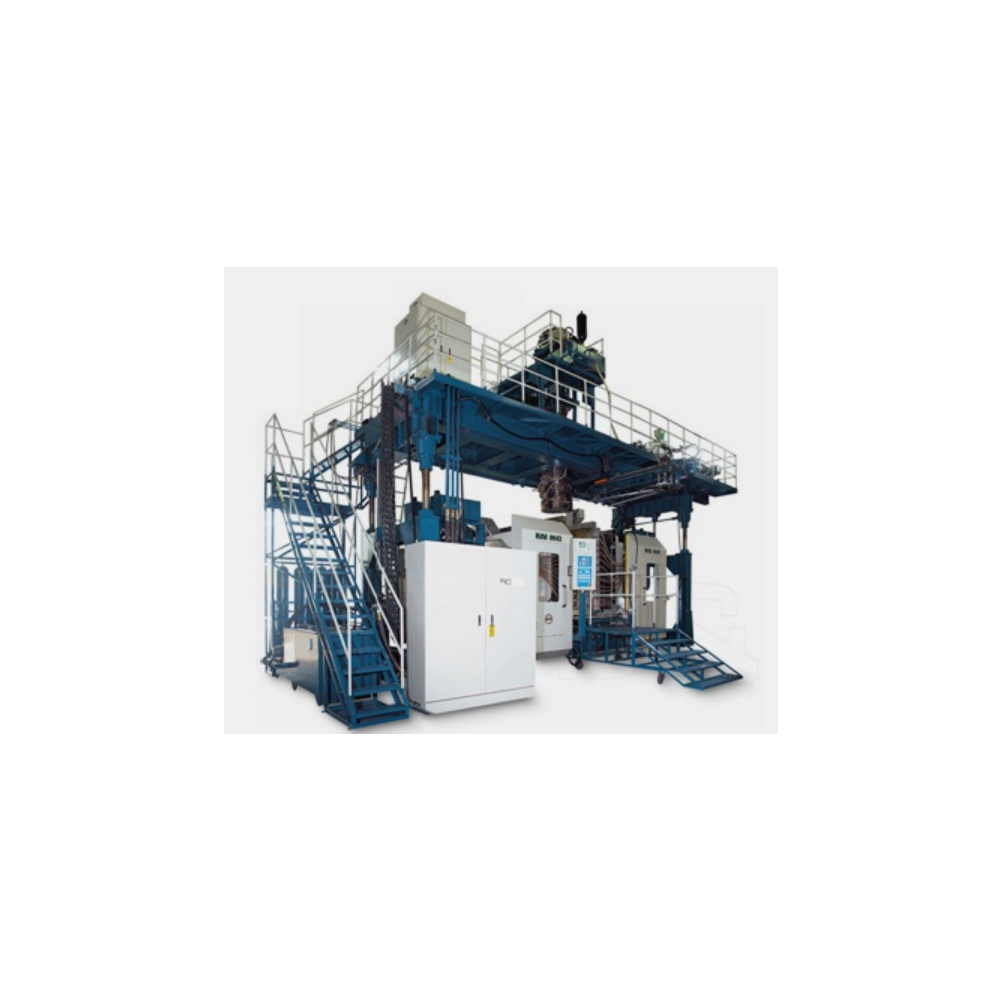

- The series of machines are equipped with a standard accumulator die head. Especially ideal for producing picnic tables, tool boxes, toys, automotive ducts, L-ring drums and stacking chemical barrels, IBC tank and water tank up to 1,500 liters.

PBI-805X/905X/1005X/1105X/1205X/1305X
Download

MODEL NO. UNIT  PBI-805X PBI-905X PBI-1005X PBI-1105X PBI-1205X PBI-1305X
Product max. capacity Liter 25  40 100 150 220 1,500
Screw diameter mm 75  75 90 90 100 100 115 115 125 135
Screw L/D ratio L/D 28/1  28/1 28/1 28/1 28/1 28/1
Inverter motor HP 50  50 75 75 100 100 125 125 150 250
Screw speed r.p.m 15-65  15-65 15-60 15-60 15-60 15-55
Extruding capacity kg/hr 165  165 210 210 280 280 350 350 400 630
Die head capacity kg 3  5 8 8 12 12 16 16 20 35 50
Clamping force ton 40  46 100 125 160 230
Hydraulic drive motor Hp 40  40 50 60 75 100+7.5
Air pressure kg/cm² 6~8  6~8 6~8 6~8 6~8 8~12
Air consumption L/min 1,800  2,000 2,600 2,800 3,200 4,600
Total power consumption kw 100  105 135 142 172 180 210 221 250 485
Machine net weight kg 12,500  16,000 22,000 27,000 32,000 100,000
*All specifications and designs are subject to change without notice

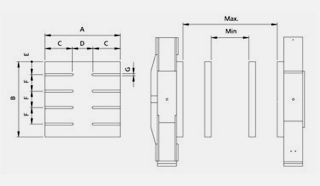

NO. Max. Min. A B C D E F G
PBI-805X 1,000 400 750 800 - - - - -
PBI-905X 1,200 400 950 950 - - - - -
PBI-1005X 1,450 450 1,100 1,200 400 300 165 290 22
PBI-1105X 1,600 500 1,200 1,600 400 400 275 350 22
PBI-1205X 2,000 550 1,400 1,800 400 600 300 400 22
PBI-1305X 2,650 1,250 1,900 1,800 650 600 300 400 -
