KM-PBS-905PC

KM-PBS-905PC

Video: PBS-905PC

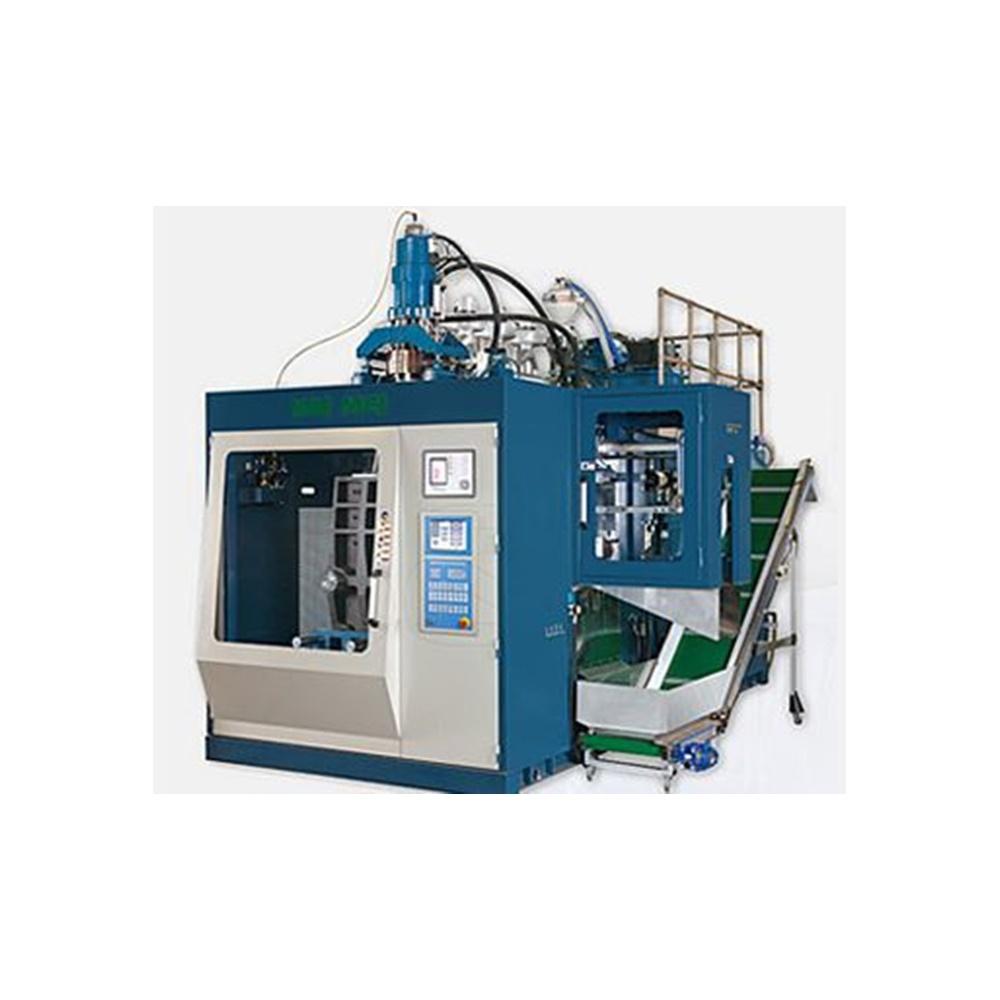

- The PBS-905PC Special Purpose Blow Molding Machine is specially designed with an advanced German type die head, featuring “first-in, first-out” performance. It is ideal for producing high quality, high clarity and high gloss PC water tanks. The machine is suitable for producing 2.5 ~5 gallon containers.

- Equipped with 10” TFT colorful LCD screen with human-machine interfacing control system. It provides powerful functions, maximum operational convenience and user-friendly operation. It also can be fitted with an imported Japanese MOOG 30 point parison control to ensure consistent product quality and uniform thickness. Equipped with bottom-blowing device. Take-out robot can take out products automatically. It can increase production speed and efficiency greatly.


MODEL NO. UNIT PBS-905-1-PC
Product max. capacity C.C. 10,000-20,000
Min./Max. dia. Of product mm 150-270
Screw Diameter mm 95
Screw L/D Ratio L/D 26/1
Inverter Motor HP 75
Capacitor for Barrel KW 17.35
Screw Speed r.p.m 20-60
Capacitor for Die Head KW 14.93
Clamping Force Ton 20.8
Hydraulic Drive Motor HP 40
System Air Pressure Kg/cm² 6-8
Air Consumption L/min 1,500
Total Electric Power KW 125
Average Energy Consumption KW 100
Machine N.W. Kg 16000
Machine G.W. Kg 16620
*All specifications and designs are subject to change without notice

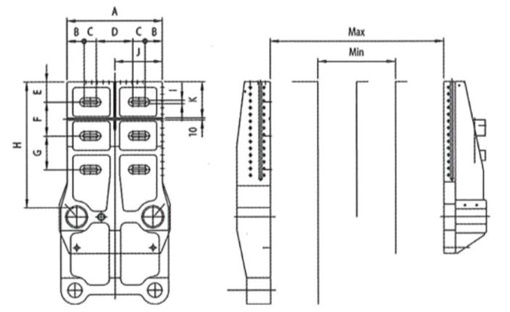

NO. Max. Min. A B C D E F G H I J K
PBS-905-1-PC 900 400 500 90 65 190 105 175 175 650 18 250 187.5
