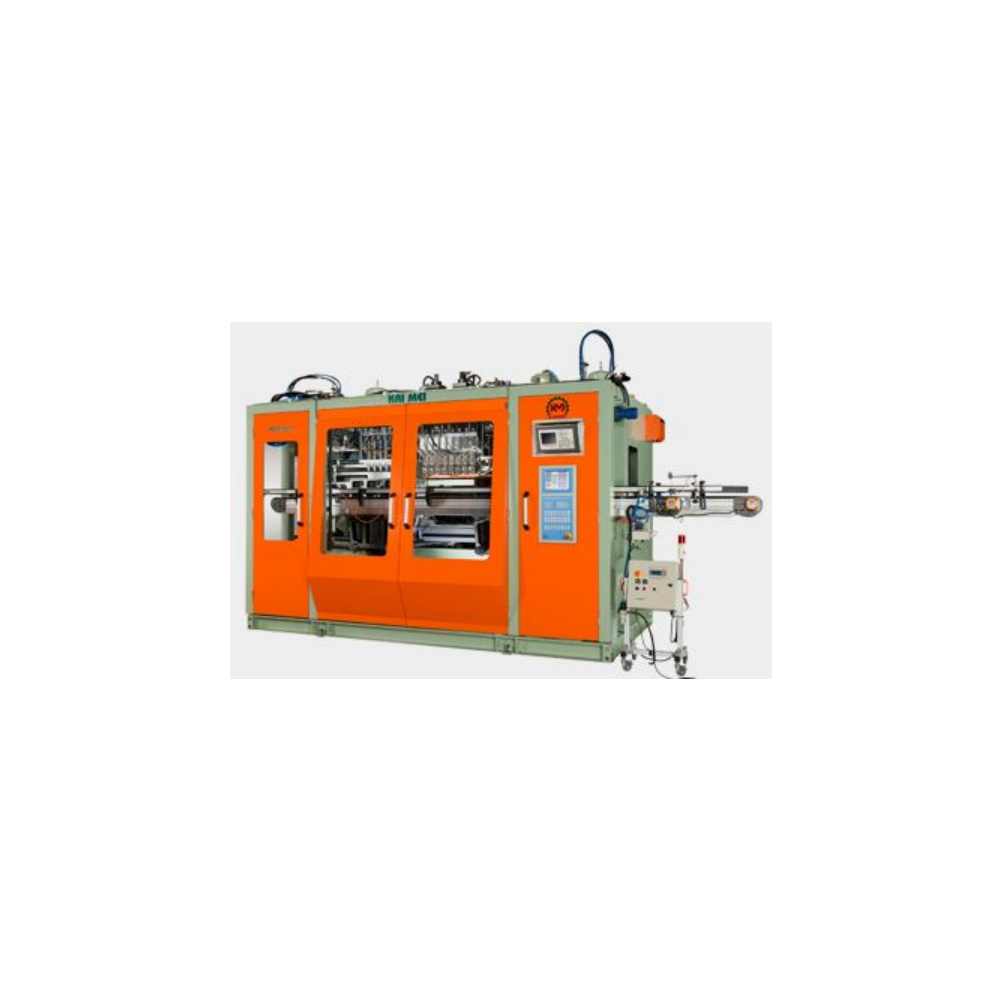

PBSS-905, 1005 (O)

PBSS-905, 1005 (O)

Video: MOUTH TO MOUTH     NON MOUTH TO MOUTH

- It is designed for small containers Mouth-to-Mouth design. Mouth-to-Mouth design can improve two-time production for double-station machines. It creates a unique and new mold design and auto cutting device. It can increase machine stability and decrease defective rates. This is the latest high-production machine technology.

- Powerful 4 tie-bars type mold clamping system combined with 8 die-head design. It can produce any kind of small and medium container at high speeds. Available to equip with auto deflashing device and take-out robot to achieve fully automatic and highly efficient production. Or it can equip with specialized take-out robot and conveyor to take out products from single side in order to have convenient production-line formulation.


MODEL NO. UNIT PBSS-905O PBSS-1005O
Prodcut max. capacity
--Mouth-to-Mouth Bottle
--Non Mouth-to-Mouth Bottle
C.C. 60-130
120-300
120-180
160-400
Mould center distance mm 80*7 80*7
Outer diameter of die mouth mm 35 35
Min./Max. dia. Of product mm 35-55 35-55
Screw Diameter mm 95 100
Screw L/D Ratio L/D 24/1 24/1
Inverter Motor HP 75 75
Screw Speed r.p.m 15-65 15-65
Extruding Capacity Kg/hr 150 180
Clamping Force Ton 11 12
Hydraulic Drive Motor HP 40 40
Dry cycle Sec. 6.5*2 6.5*2
Air Pressure Kg/cm² 8-10 8-10
Air Consumption L/min 3000 3500
Total Eletric Power KW 128 131
Machine N.W. Kg 20000 22000
*All specifications and designs are subject to change without notice

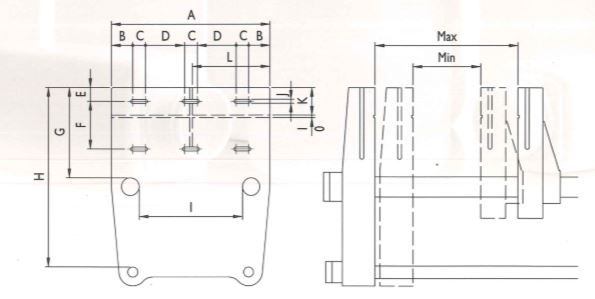

NO. Max. Min. A B C D E F G H I J K L
PBSS-905 570 270 630 85 50 155 55 190 350 700 395 16 110 310
PBSS-1005 570 270 630 85 50 155 55 190 350 700 395 16 110 310
