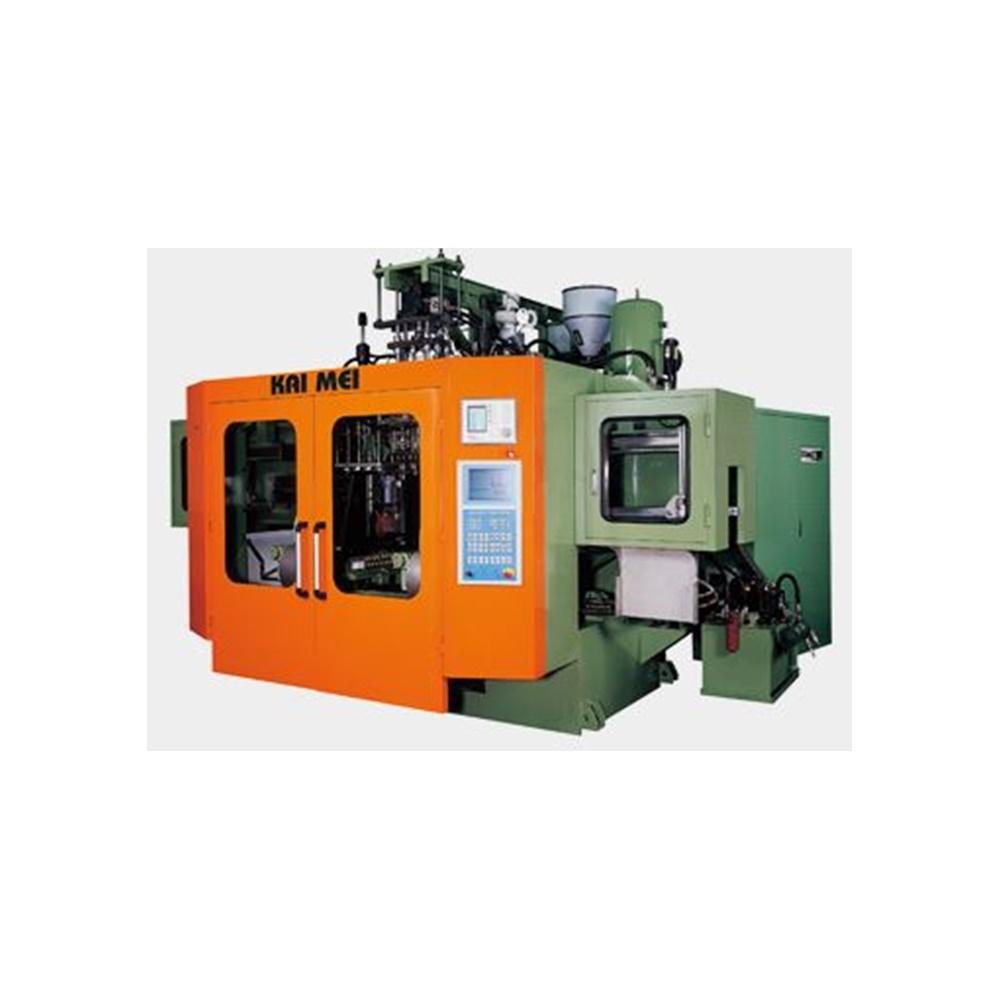

PBSS-905/1005 (S/D/T/Q)

PBSS-905/1005 (S/D/T/Q)

Video: PBSS-905D     PBSS-905Q     PBSS-1005D     PBSS-1005Q

- Powerful, crank-type mold clamping system combined with German linear motion guides for outstanding performance and high efficiency. - This series is designed to meet high production requirements. Available to equip with auto deflashing device and take-out robot to achieve fully automatic, highly efficient production.

- 10" TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, maximum operational convenience and user-friendly operation.


MODEL NO. UNIT  PBSS-905S PBSS-905D PBSS-905T PBSS-905Q PBSS-1005S PBSS-1005D PBSS-1005T PBSS-1005Q
Max. product capacity C.C. 1,000-5,000 600-2,700 200-,1,000 50-500 2,500-10,000 1,500-5,000 600-2,700 200-1,000
Min./Max. dia. of product mm 75-200 60-140 30-100 20-80 100-250 80-180 60-140 30-100
Screw diameter mm 90 90 90 90 100 100 100 100
Screw L/D ratio   24/1 24/1 24/1 24/1 26/1 26/1 26/1 26/1
Inverter motor HP 60 60 60 60 75 75 75 75
Screw rotating speed r.p.m. 15-65 15-65 15-65 15-65 15-65 15-65 15-65 15-65
Extruding capacity kg/hr 130 130 130 130 180 180 180 180
Outer diameter of die mouth mm 150 80 50 40 200 135 80 50
Mould center distance mm ~ 160 120 100 ~ 250 160 120
Clamping force ton 10.3 10.3 10.3 10.3 16.8 16.8 16.8 16.8
Oil hydraulic drive motor HP 25 25 25 25 40 40 40 40
Dry cycle sec. 4.8X2 4.8X2 5X2 5X2 5X2 5X2 5.2X2 5.2X2
Pressure of air kg/cm2 6-8 6-8 6-8 6-8 6-8 6-8 6-8 6-8
Compressed air consumption L/min 2,000 2,000 2,000 2,000 2,400 2,400 2,400 2,400
Total power consumption kw/h 86.6 88.4 89.4 91.1 108.1 113.2 116.6 119.9
Machine net weight kg 10,000 10,000 10,000 10,000 12,000 12,000 14,000 14,000
Gross weight kg 12,000 12,000 12,000 12,000 13,500 13,500 15,500 15,500
Machine dimensions m 4.6x4.4x2.8 4.6x4.4x2.8 4.8x4.5x2.8 4.8x4.5x2.8 5.3x6.2x3.2 5.3x6.2x3.2 5.6x6.2x3.2 5.6x6.2x3.2
*All specifications and designs are subject to change without notice
NO. Max. Min. A B C D E F G H I J
PBSS-905 500 160 380 50 50 180 60 196 415 18 185 150
PBSS-1005 640 240 420 65 50 190 60 220 449 18 205 165
