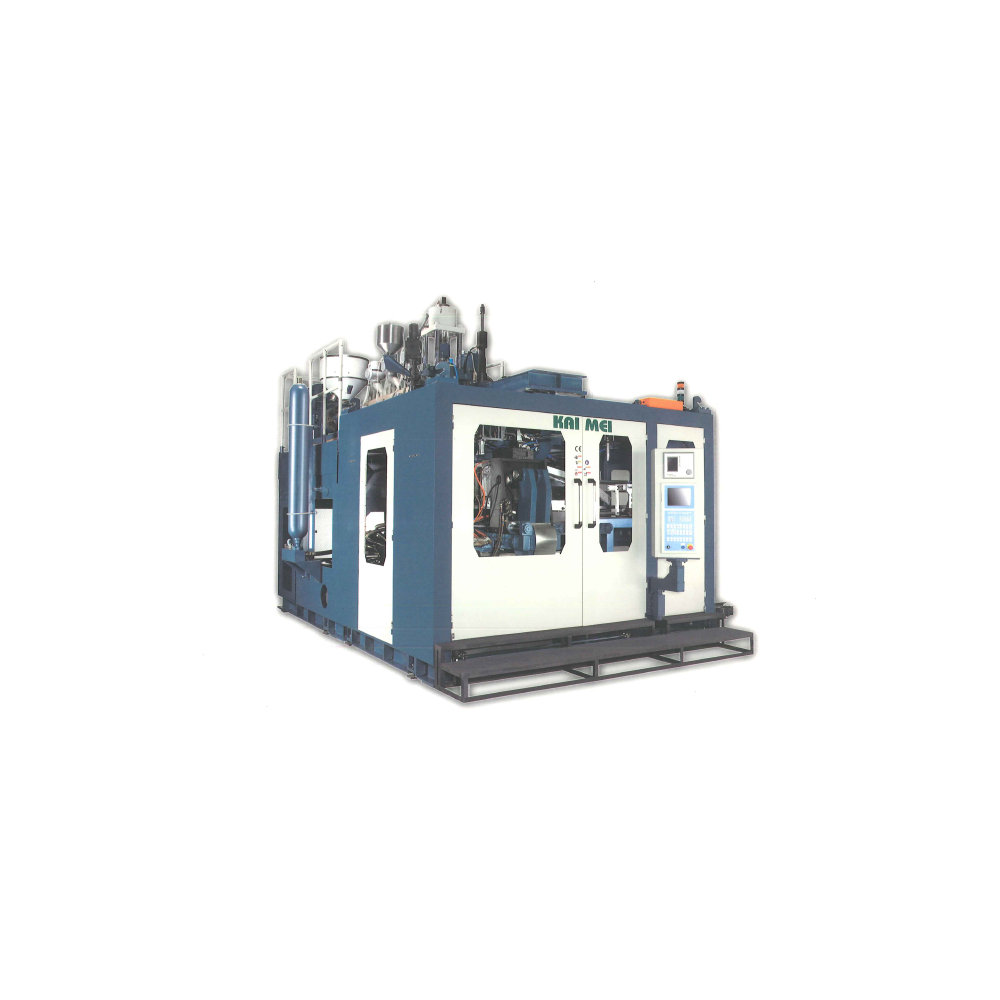

PBS-1005S-VS
PBS-1005S-VS
- Powerful crank-type mold clamping system combined with Germany linear motion guides ways provides high speed and maximum stability for clamping motions. The continuous type die head works in conjunction with auto de-flashing device and take-out robot, providing fully automatic, high efficiency production of 10-to-30 liter large containers. This greatly upgrades production speed while reducing labor cost.
| MODEL NO. | UNIT | PBS-1005S-VS | |
| Product max. capacity | C.C. | 10,000-30,000 | |
| Min./Max. dia. of product | mm | 150-300 | |
| Screw diameter | mm | 95 | 30 |
| Screw L/D ratio | 26/1 | 17/1 | |
| Inverter motor/Servo motor | HP | 75 | 5 |
| Capacitor for barrel | kw | 19.7 | 1.65 |
| Screw speed | r.p.m | 20-60 | |
| Extruding capacity | kg/hr | 150 | |
| Capacitor for die head | kw | 15.15 | |
| Clamping force | ton | 28 | |
| Hydraulic drive motor | Hp | 40 | |
| System air pressure | kg/cm | 6~8 | |
| Air consumption | L/min | 1,500 | |
| Total electric power | kw | 140 | |
| Average energy consumption | kw | 112 | |
| Machine n.w | kg | 19650 | |
| Machine g.w | kg | 20200 | |
