KM-MIB-85-C
KM-MIB-85-C

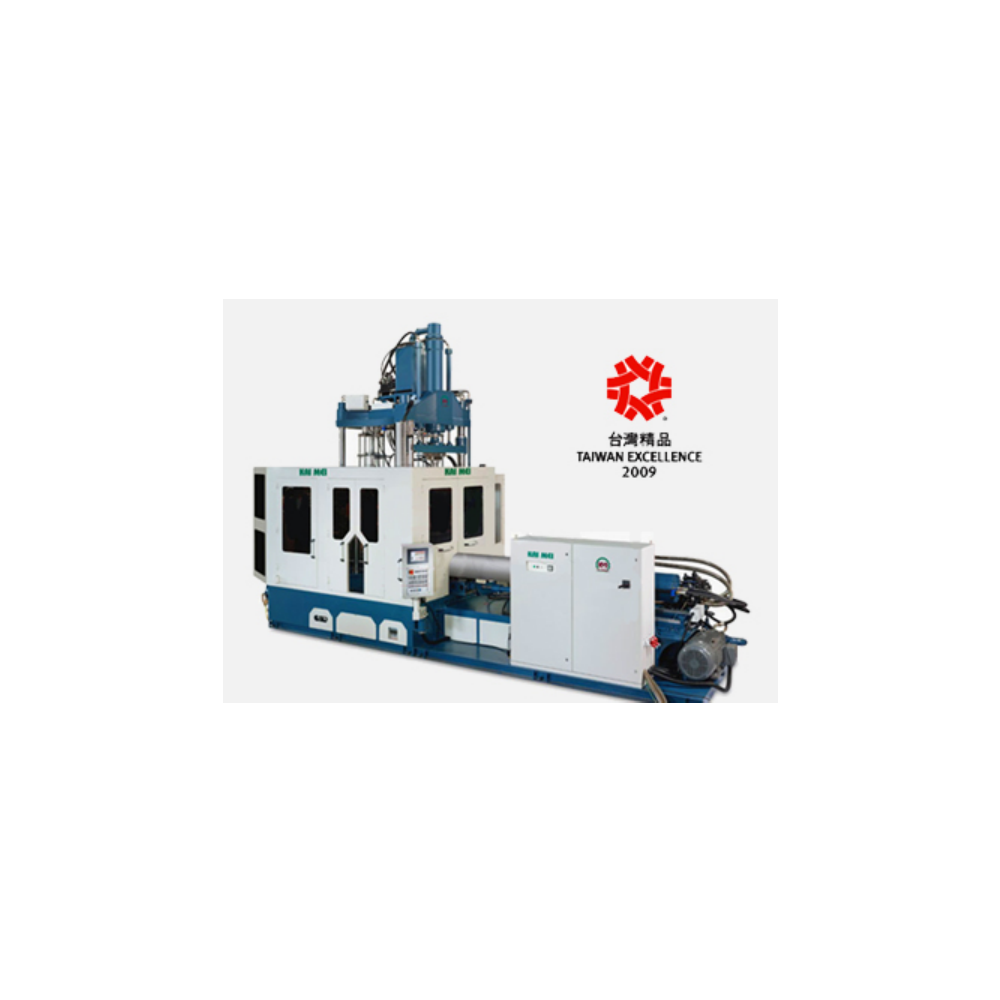

Video: MIB 85-C- It is a handled PC water bottle, and it only needs one machine to finish the process of injection and blowing. It is an integrated, one-step, and multi-function machine. Handle and bottle belong to one kind of raw material. Raw Material is easy to recycle. Same kind of raw material is easy to deal with during recycle. Save money, save space, and save energy. MIB 85-C machine not only can save energy, but also can save environmental protection. Flash of this machine only has 2.56%.
| MODEL NO. | UNIT | MIB 85-C |
| Screw Diameter | mm | 85 |
| Injection Capacity | cm3 | 1440 |
| Screw Heating Capacity | kw | 24.7 |
| Injection Clamping Force | ton | 61 |
| Injection Mold Daylight | mm | 580 |
| Blowing Mold Clamping Force | ton | 41 |
| Blowing Mold Opening Stroke | mm | 400-800 |
| Maxinum Blowing Air Pressure | kg/cm2 | 20 |
| Blowing Air Pressure | kg/cm2 | 14 |
| Operation Air Pressure | bar | 8 |
| Hydraulic Motor | hp | 50HP+100HP |
| Machine Size(L x W x H) | mm | 9,500 x 4,000 x 5,500 |
| Machine Weight | ton | 15.0 |
*All specifications and designs are subject to change without notice
- Approximate Capacity (Gallon) 5 G
- Neck Diameter 65 mm
- Body Diameter 270 mm
- Height Diameter 485 mm
