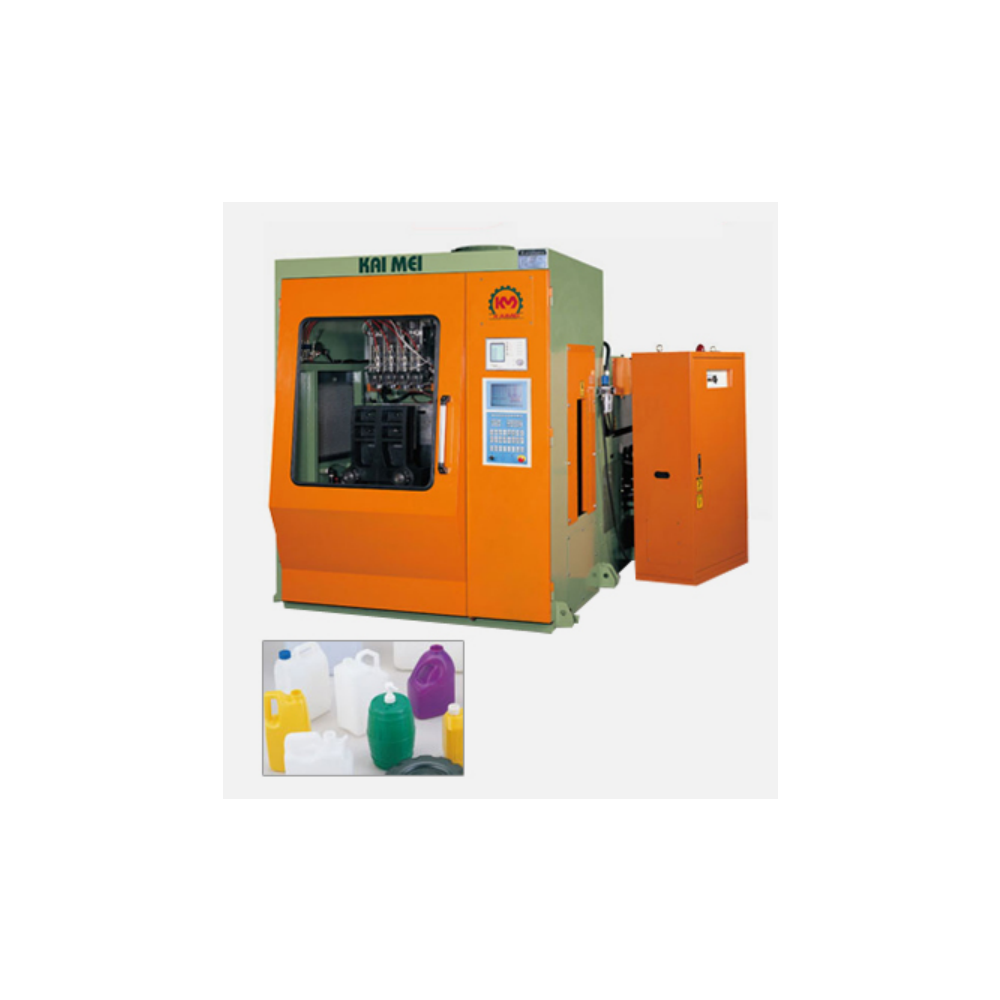

PBS-605/705 (S/D/T/Q)

PBS-605/705 (S/D/T/Q)

Video: PBS-605D

- Durable and horizontal traveling mold carriage combined with German linear motion guides for maximum stability. The series is excellent for producing medium and large sized containers.

- Available to equip with an auto deflashing device and take-out robot to achieve fully automatic and highly efficient production.

- 10" TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, maximum operational convenience and user-friendly operation.


MODEL NO. UNIT  PBS-605S PBS-605D PBS-605T PBS-605Q
Max. product capacity C.C. 1,000-5,000 450-1,800 200-1,000 50-500
Min. / Max. dia. of product mm 75-200 50-120 30-100 20-80
Screw diameter mm 65 65 65 65
Screw L/D ratio L/D  24/1 24/1 24/1 24/1
Inverter motor HP 20 20 20 20
Screw rotating speed r.p.m. 15-65 15-65 15-65 15-65
Extruding capacity kg/hr 55 55 55 55
Outer diameter of die mouth mm 150 65 50 40
Mould center distance mm ~ 140 120 100
Clamping force ton 8.8 8.8 8.8 8.8
Oil hydraulic drive motor HP 15 15 15 15
Dry cycle sec. 4.2 4.2 5.0 5.0
Air pressure kg/cm2 6-8 6-8 6-8 6-8
Air consumption L/min 750 750 750 750
Total power consumption kw/h 38.0 40.5 42.0 46.7
Machine net weight kg 4,800 4,800 4,800 4,800
Gross weight kg 5,500 5,500 5,500 5,500
Machine dimensions m 3.7x2.5x2.5 3.7x2.5x2.5 3.8x2.7x2.5 3.8x2.7x2.5

MODEL NO. UNIT  PBS-705S PBS-705D PBS-705T PBS-705Q
Max. product capacity C.C. 2,500-10,000 600-2,700 450-1,800 200-1,000
Min. / Max. dia. of product mm 100-250 60-140 50-120 30-100
Screw diameter mm 75 75 75 75
Screw L/D ratio L/D  24/1 24/1 24/1 24/1
Inverter motor HP 40 40 40 40
Screw rotating speed r.p.m. 15-65 15-65 15-65 15-65
Extruding capacity kg/hr 75 75 75 75
Outer diameter of die mouth mm 200 80 65 50
Mould center distance mm ~ 160 140 120
Clamping force ton 13.0 13.0 13.0 13.0
Oil hydraulic drive motor HP 25 25 25 25
Dry cycle sec. 5.0 5.0 5.2 5.2
Air pressure kg/cm2 6-8 6-8 6-8 6-8
Air consumption L/min 1200 1200 1,200 1,200
Total power consumption kw/h 64.9 66.4 67.3 75.0
Machine net weight kg 5,000 5,000 6,500 6,500
Gross weight kg 6,000 6,000 7,000 7,000
Machine dimensions m 4.3x2.7x2.6 4.3x2.7x2.6 4.3x2.7x2.8 4.3x2.7x2.8
* All specifications and designs are subject to change without notice

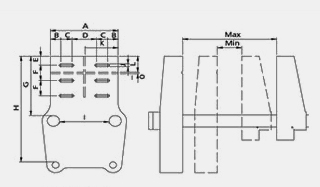

NO. PBS-605 PBS-705
Max. 540 650
Min. 140 200
A 390 440
B 60 80
C 65 60
D 140 160
E 60 60
F 100 180
G 410 430
H 715 740
I 280 330
J 18 18
K 190 215
L 105 105
