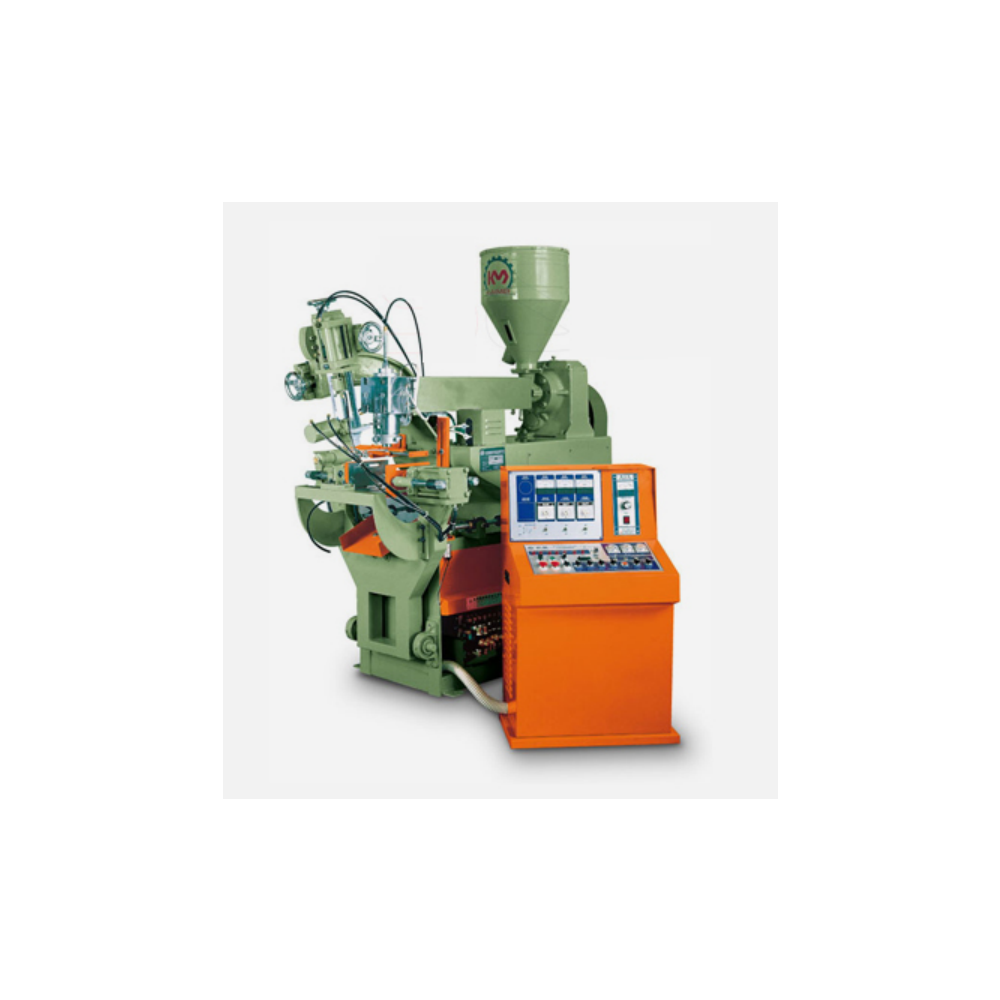

PBA-210 (A/B)

PBA-210 (A/B)

Video: PBA-210     PBA-210A

- The series of machines are fully pneumatic driven featuring high speed motion. Especially ideal for providing small containers and popsicle containers. The series features high production output, highly economic efficiency and easy maintenance.

- RELAY CONTROL SYSTEM.


MODEL NO. UNIT PBA-210(PE) PBA-210A(PVC) PBA-210A(PE) PBA-210B
Max. product capacity C.C. 20~300 20~300 20~300 20~300
Min. / Max. dia. of product mm 10~80 10~80 10~80 10~80
Screw diameter mm  40 40 40 35x35
Screw L/D ratio   22/1 22/1 22/1 22/1
Inverter motor HP 5 5 5 3x2
Screw rotating speed r.p.m. 15~50 15~50 15~50 15~50
Extruding capacity kg/hr 14 16 14 10x2
Outer diameter of die mouth mm 40 46 40 55
Open close daylight mm 80~240 80~240 80~240 80~240
Dry cycle sec. 2 2 2 2
Pressure of air kg/cm² 4~6 4~6 4~6 4~6
Compressed air consumption L/min 400 600 500 600
Total power consumption kw/h 8 9 8 10
Machine net weight kg 500 600 600 700
Gross weight kg 900 1000 1000 1150
Machine dimensions m 1.8x1.6x1.9 1.8x1.6x1.9 1.8x1.6x1.9 1.8x1.6x1.9
* All specifications and designs are subject to change without notice

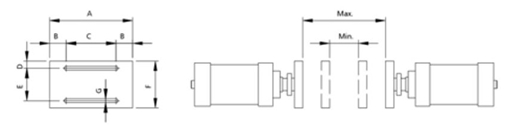

NO. Max. Min. A B C D E F G
PBA-210 240 80 230 46 138 20 90 130 11
