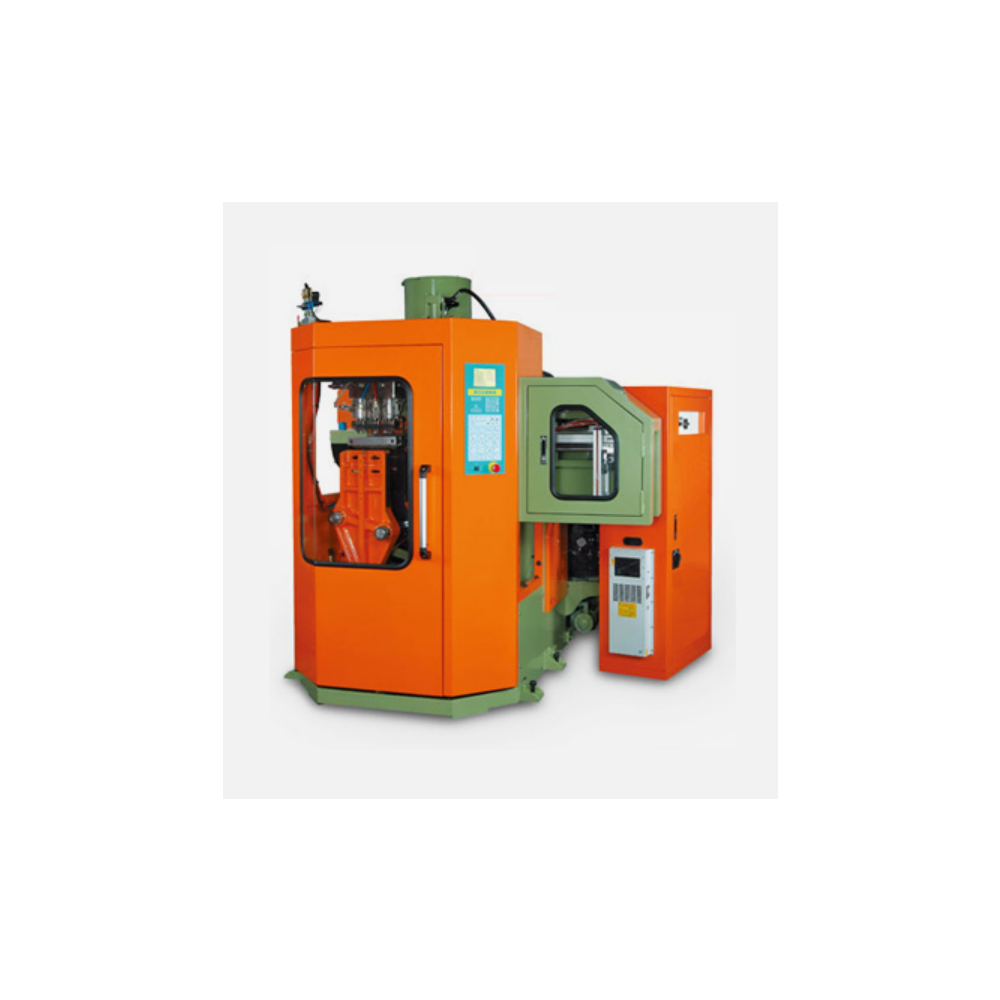

PBS-305/405/505 (S/D/T/Q)

PBS-305/405/505 (S/D/T/Q)

Video: PBS-505D     PBS-505D-GE

- Custom design is avaiable to suit various plastic materials such as PE, PP, PVC, PS, PC and nylon. Designed for producing medium and small sized containers. Featuring fully flash-free and highly efficient automatic long production runs.

- 5" monochrome LCD screen combined with human-machine interface control system for user-friendly operations.

PBS-305/405/505 (S/D/T/Q)
Download

MODEL NO. UNIT　 PBS-305S PBS-305D PBS-305T
Product capacity C.C. 50-500 30-200 10-100
Product diameter mm 20-80 15-65 8-30
Screw diameter mm 40 40 40
Screw L/D ratio 　 22/1 22/1 22/1
Inverter motor HP 7.5 7.5 7.5
Screw rotation speed r.p.m. 15-65 15-65 15-65
Extruding capacity kg/hr 14 14 14
Max. Die mouth diameter mm 40 35 25
Mould center distance mm ~ 85 75
Clamping force ton 2.4 2.4 2.4
Hydraulic drive motor HP 5 5 5
Dry cycle sec. 2.6 2.6 2.6
Air pressure Bar 6-8 6-8 6-8
Air consumption L/min 500 500 600
Total power consumption kw/h 14.4 15.9 16.3
Machine net weight kg 1,400 1,400 1,400
Gross weight kg 1,900 1,900 1,900
Machine dimension m 2.3x1.5x2.2 2.3x1.5x2.2 2.4x1.6x2.2

MODEL NO. UNIT　 PBS-405S PBS-405D PBS-405T PBS-405Q
Product capacity C.C. 80-1,000 50-500 30-200 10-100
Product diameter mm 30-100 20-80 15-65 8-30
Screw diameter mm 45 45 45 45
Screw L/D ratio 　 24/1 24/1 24/1 24/1
Inverter motor HP 10 10 10 10
Screw rotation speed r.p.m. 15-65 15-65 15-65 15-65
Extruding capacity kg/hr 24 24 24 24
Max. Die mouth diameter mm 55 40 35 25
Mould center distance mm ~ 100 85 75
Clamping force ton 4.5 4.5 4.5 4.5
Hydraulic drive motor HP 5-7.5 5-7.5 5-7.5 5-7.5
Dry cycle sec. 3 3 3 3
Air pressure Bar 6-8 6-8 6-8 6-8
Air consumption L/min 600 500 600 600
Total power consumption kw/h 21.5 21.9 24.7 26.3
Machine net weight kg 2,500 2,500 2,500 2,500
Gross weight kg 3,000 3,000 3,000 3,000
Machine dimension m 2.8x2.1x2.3 2.8x2.1x2.3 2.9x2.2x2.3 2.9x2.2x2.3

MODEL NO. UNIT　 PBS-505S PBS-505D PBS-505T PBS-505Q
Product capacity C.C. 450-2,500 200-1,000 50-500 30-200
Product diameter mm 45-150 30-100 20-80 15-65
Screw diameter mm 55 55 55 55
Screw L/D ratio 　 24/1 24/1 24/1 24/1
Inverter motor HP 15 15 15 15
Screw rotation speed r.p.m. 15-65 15-65 15-65 15-65
Extruding capacity kg/hr 36 36 36 36
Max. Die mouth diameter mm 80 50 40 35
Mould center distance mm ~ 120 100 85
Clamping force ton 5.3 5.3 5.3 5.3
Hydraulic drive motor HP 7.5-10 7.5-10 7.5-10 7.5-10
Dry cycle sec. 3.3 3.3 3.6 3.6
Air pressure Bar 6-8 6-8 6-8 6-8
Air consumption L/min 700 700 700 700
Total power consumption kw/h 29.0 31.2 33.3 33.4
Machine net weight kg 3,700 3,700 3,700 3,700
Gross weight kg 4,200 4,200 4,200 4,200
Machine dimension m 3.2x1.8x2.3 3.2x1.8x2.3 3.4x2.5x2.5 3.4x2.5x2.5
*All specifications and designs are subject to change without notice

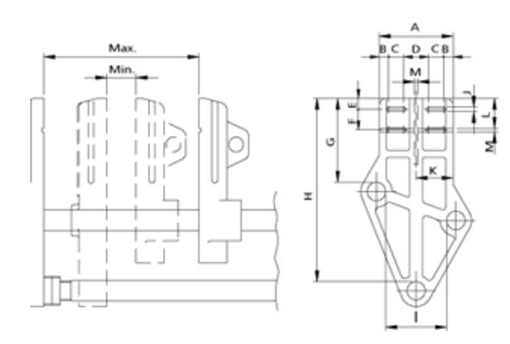

NO. PBS-305 PBS-405 PBS-505
Max. 230 320 420
Min. 60 60 80
A 200 260 300
B 25 55 45
C 40 40 60
D 70 70 90
E 30 40 40
F 55 70 92
G 225 310 300
H 496 640 624
I 150 200 240
J 12 15 16
K 100 130 150
L 86 75 86
M 10 10 10
